13mm FlipTop® Optima Flip-Off Seal
The 13mm FlipTop® Optima is an aluminium-plastic flip off seal for small-volume injectable vials: an AA8011 aluminium shell crimped over the rubber stopper with a moulded polypropylene button you flip up to expose a central injection point. Total seal height is 7.62 to 8.38 mm, with six tapered bridges and a maximum opening force of 30 N, made to ISO 8362-6.
This page gives the 13 mm dimensions, materials, quality position, applications and ordering. For the full range and design options, see the FlipTop® Optima product page.
Key takeaways
- The 13mm Optima is the small-vial flip-off seal in the FlipTop® Optima range.
- Total seal height 7.62–8.38 mm, inner aluminium Ø 13.36 mm (min), outer disc Ø 14.99 mm (max).
- Six tapered bridges; maximum opening force 30 N.
- Standard packing is 15,000 per box (5,000 × 3 bags); Tyvek bagging available.
- Aluminium AA8011 with epoxy lacquer; polypropylene button moulded in-house on Toyo machines.
- Made under ISO 15378, ISO 9001 and ISO 14001 with a Drug Master File, 100% camera inspected.
What is the 13mm FlipTop® Optima?

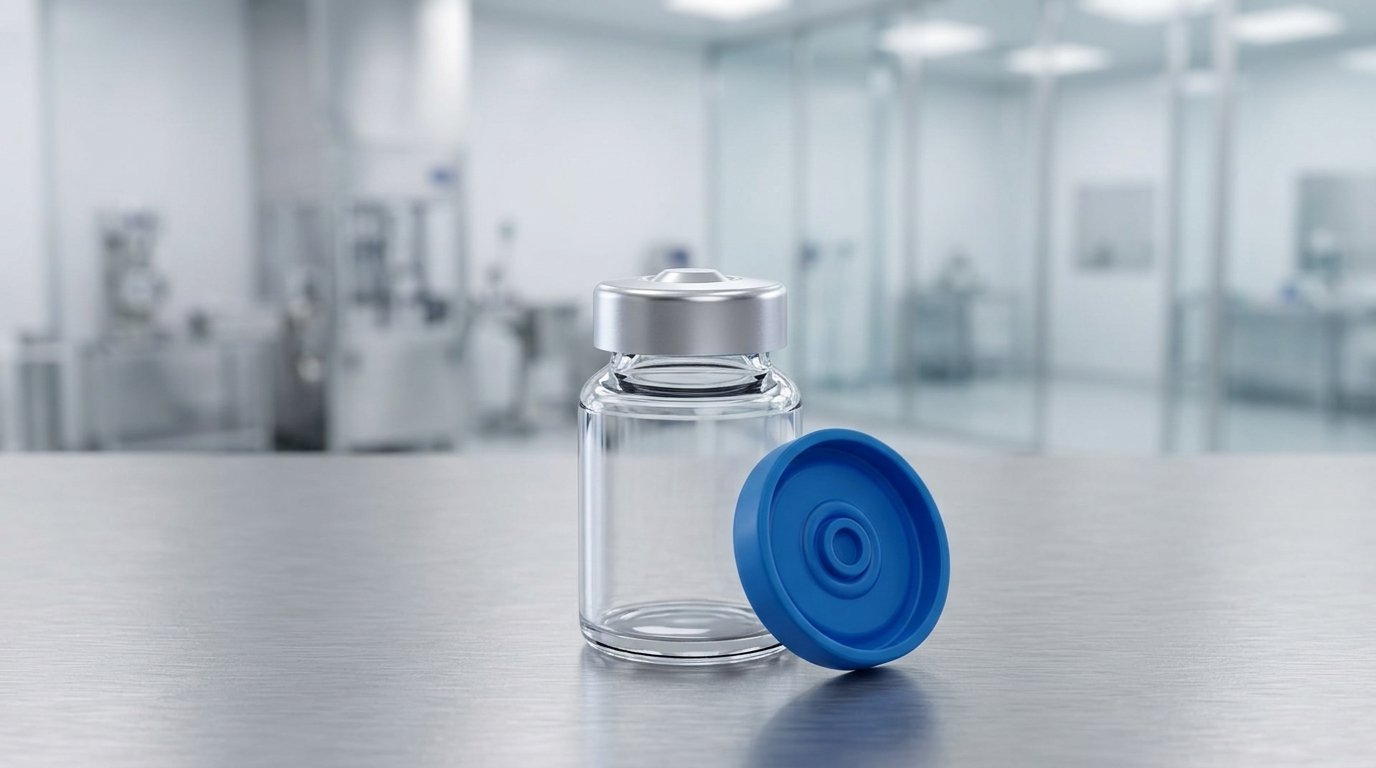

The 13mm Optima is the standard flip-off seal for 13 mm neck vials, the common small-volume injectable format. The deep-drawn aluminium shell crimps under the vial neck flange to compress the rubber stopper against the glass, forming the sterile barrier. The polypropylene button on top is flipped up at point of use to expose a small central area of the stopper for the needle, while the aluminium stays crimped and the seal stays intact.
It is one of five sizes in the Optima range (13, 20, 28, 32 and 34 mm). Match the 13 mm seal to a 13 mm vial finish and a 13 mm stopper of the same nominal diameter; vial necks follow ISO 8362-1. For the next size up, see the 20mm FlipTop® Optima.
Specifications and sizing
Controlled dimensions for the 13 mm Optima, from the Autofits engineering drawings, with maximum opening force and standard packing. The standard shipper box is 420 × 270 × 320 mm.
| Property | Value |
|---|---|
| Nominal size | 13 mm |
| Inner Ø aluminium seal (D1) | 13.36 mm (min) |
| Outer Ø disc (D2) | 14.99 mm (max) |
| Disc height | 2.90–3.30 mm |
| Inner aluminium height | 6.15–6.40 mm |
| Total seal height | 7.62–8.38 mm |
| Aluminium thickness | 0.16–0.20 mm |
| Bridges | 6 taper |
| Max opening force | 30 N |
| Standard packing (per box) | 15,000 (5,000 × 3 bags) |
Top designs are Bridge, Button (intrinsic tamper evidence, with a 12-stem flower under the button disc) and Flower. Finishes are glossy, matte, embossed or printed, in a wide range of colours customised to requirement.
Materials and quality
The shell is AA8011 aluminium alloy (EN 15088:2005, EN 10204 3.1, tested to BS EN 485-2:2008; REACH and RoHS compliant) with an epoxy lacquer coating to 21 CFR 175.300. The button is polypropylene to 21 CFR 177.1520, moulded in-house on Japanese Toyo injection-moulding machines and assembled in an ISO Class 8 cleanroom. Heavy metals are held to a maximum 100 ppm total and the components are BSE/TSE-free (EMEA/410/01 rev. 3).
Every seal passes 100% high-speed camera inspection. Production runs under ISO 15378:2017 GMP, with ISO 9001:2015 and ISO 14001:2015 certification, a Drug Master File (DMF 18100) and CFDA registration, in the 75,000 sq ft Nashik facility. AQL: critical nil, major not more than 2.5%, minor not more than 4%. See the quality page, ISO 8362-6 and ISO 15378.
Forms of supply
The 13 mm Optima ships Regular (non-sterile), Ready-to-Use (gamma or ETO sterilized, double-bagged for aseptic areas) and Ready-to-Sterilize. Shelf life is 3.5 years before capping for non-irradiated seals (plus 5 years after capping) and 2 years before capping for RTU. Minimum order quantities and lead times are available on request.
Applications
The 13 mm Optima is used on small-volume injectable and parenteral vials, including liquid and lyophilised products, where colour coding differentiates strengths or where intrinsic tamper evidence is required (the Button design). Browse comparable closures on the 13 mm by-size index.
FAQ
What is the total height of a 13mm flip-off seal?
The 13 mm FlipTop® Optima has a total seal height of 7.62 to 8.38 mm, with an inner aluminium height of 6.15 to 6.40 mm and a disc height of 2.90 to 3.30 mm. The inner aluminium diameter is 13.36 mm minimum and the outer disc diameter is 14.99 mm maximum.
What is the opening force of the 13mm Optima?
The maximum opening force for the 13 mm Optima is 30 N. It has six tapered bridges; opening force varies with the number of bridges in the design.
How many 13mm seals are in a box?
Standard packing is 15,000 seals per box, supplied as 5,000 in each of three bags, in a 420 × 270 × 320 mm shipper. Tyvek bagging is available as an alternative.
Is the 13mm seal available sterilized?
Yes. It is offered Ready-to-Use, sterilized by gamma irradiation or ETO and supplied double-bagged for aseptic filling, as well as Ready-to-Sterilize and Regular. RTU seals are washed and assembled in an ISO Class 8 cleanroom.
What vial does the 13mm Optima fit?
It fits 13 mm neck vials with a matching 13 mm rubber stopper. Match the seal, vial finish and stopper to the same nominal diameter; vial necks follow ISO 8362-1.
