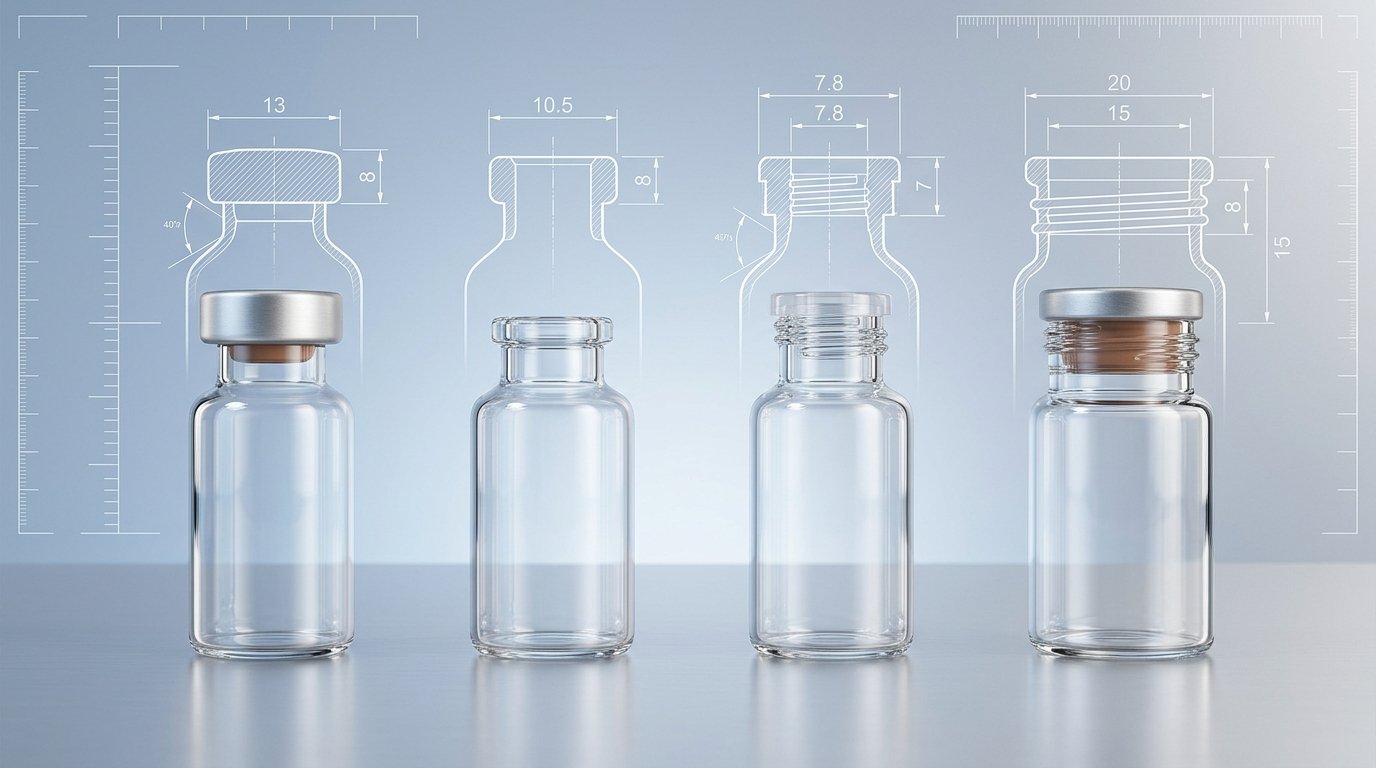

Vial Neck Types and Sizes Under ISO 8362

Vial Neck Types and Sizes Under ISO 8362

A vial’s neck finish is the shape and dimensions of its opening, and it is standardised under the ISO 8362 series so that stoppers and seals of the matching nominal size (commonly 13 mm and 20 mm) fit and seal correctly. The neck finish is the reference everything else is built around: the rubber stopper has to seat in it, and the aluminium or aluminium-plastic seal has to crimp over the stopper and under the neck flange. Choosing a vial means choosing its neck size, because that determines which stoppers and seals it takes.

This guide explains what a vial neck finish is, how ISO 8362 standardises it, the common neck sizes, and why the neck finish matters when selecting components.

Key takeaways

  • A vial neck finish is the standardised shape and dimensions of the vial opening, including the flange the seal crimps under.
  • The ISO 8362 series standardises vial and accessory dimensions so vials, stoppers, and seals of the matching size are compatible.
  • Common nominal neck sizes are 13 mm and 20 mm, with larger sizes for bigger vials; the figure is the nominal neck designation, not the vial’s volume.
  • The neck size determines which stopper (ISO 8362-2) and which seal (ISO 8362-3, 8362-6, 8362-7) fit.
  • Tubular glass vials are dimensioned under ISO 8362-1; moulded-glass vials under ISO 8362-4.
  • The neck size is separate from the vial’s fill volume; the same neck can appear on vials of different capacities.

What is a vial neck finish?

A vial neck finish is the standardised geometry of the vial’s opening: the bore the stopper plugs into, the rim the stopper flange rests on, and the flange (lip) the seal crimps under. It is the part of the vial that the closure components interface with, so its dimensions have to be controlled precisely.

When people refer to a “13 mm vial” or “20 mm vial,” they are usually naming the nominal neck finish, not the vial’s volume. The figure is a designation for the neck size family, and a vial of that neck size takes the stopper and seal of the same designation. The body and volume of the vial can vary while the neck finish stays the same, which is why a single neck size can be used across several vial capacities.

How ISO 8362 standardises the neck

The ISO 8362 series, “Injection containers and accessories,” standardises the vials and their accessories so that components of the matching nominal size are compatible. Each part of the series covers a component, all dimensioned to fit together at the neck.

Part Component
ISO 8362-1 Injection vials made of glass tubing
ISO 8362-2 Closures (stoppers) for injection vials
ISO 8362-3 Aluminium caps for injection vials
ISO 8362-5 Freeze drying closures
ISO 8362-6 Aluminium-plastic combination caps
ISO 8362-7 Aluminium-plastic combination caps without overlapping plastics part

Because the vial neck of Part 1 (or the moulded-glass vial of Part 4) is dimensioned to match the stopper of Part 2 and the caps of Parts 3, 6, and 7, a vial, stopper, and seal of the same nominal neck size assemble into a sound closure. That is the practical value of the standard: interoperability of components across suppliers.

Common vial neck sizes

The most common pharmaceutical vial neck sizes are designated 13 mm and 20 mm, with larger sizes such as 32 mm used for bigger vials. Each size is a family of matched components:

  • 13 mm neck: widely used for smaller injectable vials. Takes a 13 mm stopper and a 13 mm seal.
  • 20 mm neck: very common across injectable and many vaccine vials. Takes a 20 mm stopper and a 20 mm seal.
  • Larger necks (for example 32 mm): used for larger-volume vials, with correspondingly larger stoppers and seals.

The nominal figure designates the neck finish, and the actual critical dimensions are defined in the ISO standard. Selecting components is then a matter of matching the designation: a 20 mm vial pairs with a 20 mm stopper and a 20 mm seal.

Why the neck finish matters when choosing components

The neck finish matters because it dictates which stopper and which seal will fit, and a mismatch means the closure will not seat or crimp correctly. When specifying a vial closure, the neck size is the first decision, and the stopper and seal follow from it.

  • The stopper has to plug the bore and seat its flange on the rim, so it must be the matching neck size, per ISO 8362-2.
  • The seal has to fit over the seated stopper and crimp under the neck flange, so it must be the matching neck size, per the relevant cap standard.
  • The seal type (flip-off, tear-off, tear-down, pull-ring) is a separate choice within the neck size, covered in pairing the rubber stopper and aluminium seal.

So the neck size sets the family of compatible components, and within that family the buyer chooses the stopper material and the seal type for the product and market.

How this works in practice at Autofits

Autofits manufactures seals in the standard vial neck sizes, 13 mm, 20 mm, and 32 mm, so they match the corresponding vials and stoppers. The range includes FlipTop Optima flip-off seals, tear-off and tear-down aluminium seals, and aluminium pilfer-proof (ROPP) caps; the full set is on the products page. Producing to the standard neck finishes with tight dimensional control is what lets the seals crimp cleanly over the matching stopper and vial. Production runs under an ISO 15378:2017 quality system, alongside ISO 9001:2015 and ISO 14001:2015 certification and a Drug Master File, in a 75,000 sq ft Nashik facility with an ISO Class 8 cleanroom and high-speed visual inspection for dimensional control. The full certification set is on the quality page.

Frequently asked questions

What is a vial neck finish?

A vial neck finish is the standardised shape and dimensions of the vial’s opening: the bore the stopper plugs into, the rim the stopper flange rests on, and the flange the seal crimps under. It is the part of the vial the closure components interface with, so its dimensions are controlled precisely and standardised under ISO 8362.

What does a 20 mm vial mean?

A 20 mm vial usually refers to the nominal neck finish, not the vial’s volume. It means the vial has a 20 mm neck size and takes a 20 mm stopper and a 20 mm seal. The body and capacity of the vial can vary while the neck size stays 20 mm, so the figure designates the neck, not how much the vial holds.

What are the common vial neck sizes?

The most common pharmaceutical vial neck sizes are designated 13 mm and 20 mm, with larger sizes such as 32 mm for bigger vials. Each is a family of matched components: a vial of a given neck size takes the stopper and seal of the same designation. The actual critical dimensions are defined in the ISO 8362 standard.

How does ISO 8362 relate to vial neck sizes?

The ISO 8362 series standardises injection vials and their accessories so that components of the matching nominal neck size are compatible. ISO 8362-1 covers tubular glass vials, ISO 8362-2 covers stoppers, and ISO 8362-3, 8362-6, and 8362-7 cover the caps. All are dimensioned to fit at the neck, so a vial, stopper, and seal of the same size assemble correctly.

Does the neck size determine the vial’s volume?

No. The neck size designates the neck finish and the components that fit it, not the vial’s fill volume. The same neck size can appear on vials of different capacities, because the vial body and volume can change while the neck finish stays the same. Volume is specified separately from the neck size.

Related reading

Sources

  • ISO: ISO 8362-1:2018, Injection containers and accessories, Part 1: Injection vials made of glass tubing (https://www.iso.org/standard/74398.html)
  • ISO: ISO 8362-2:2024, Injection containers and accessories, Part 2: Closures for injection vials (https://www.iso.org/standard/87251.html)

*Last updated: 2026-06-18. This article is general technical information, not regulatory or compliance advice; confirm current standard editions and requirements with ISO.*
