Autofits Product Catalogue: Every Vial Seal and ROPP Cap on One Page

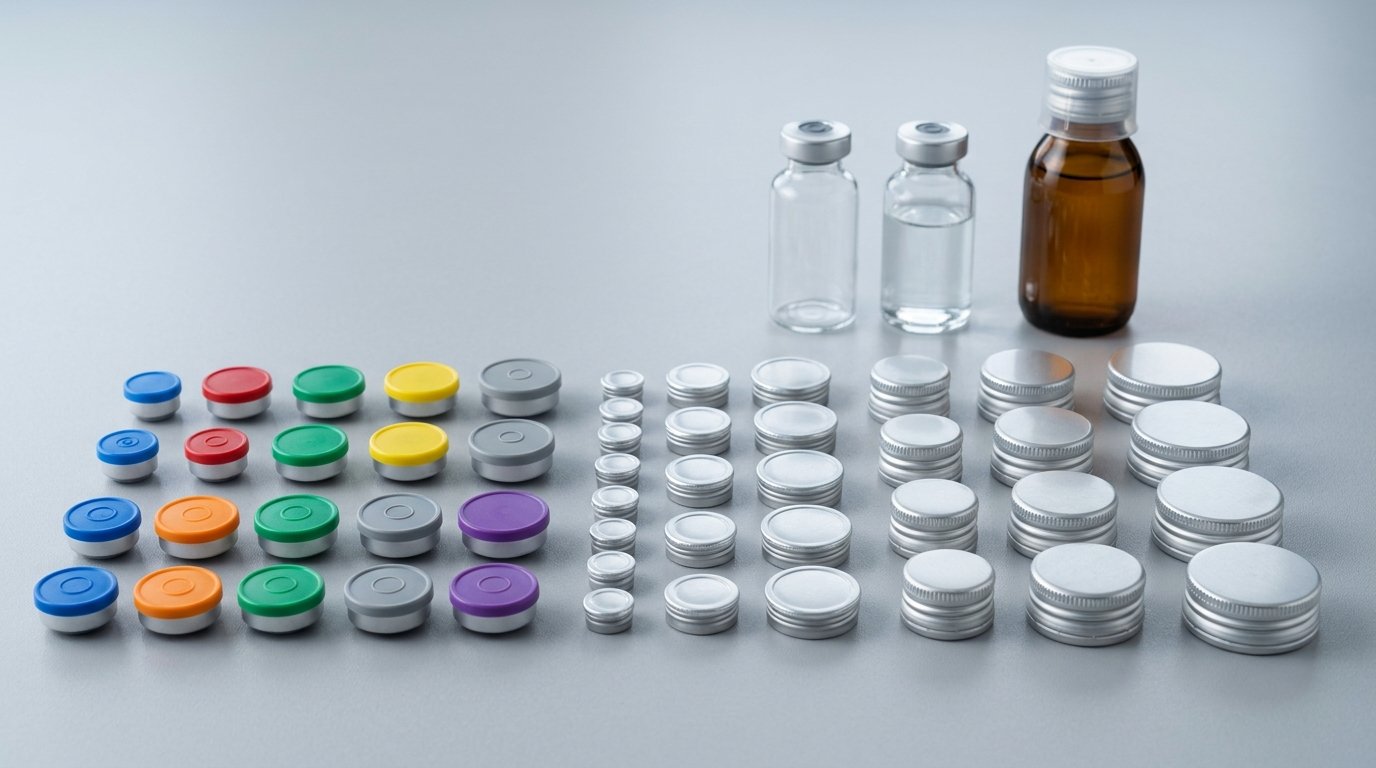

The Autofits product catalogue covers five vial seal lines in 13, 20, 28, 32 and 34 mm and aluminium pilfer-proof (ROPP) caps in 22, 25, 28, 35 and 38 mm, all made by Autofits Packaging Pvt. Ltd. in Nashik, India. The seal lines are the FlipTop Optima flip-off seal, the FlipTop Pull Ring, the FlipTop Tear-Down, the all-aluminium tear-off seal and the all-aluminium tear-down seal. This page is the catalogue itself, laid out to print: each line with its sizes, key dimensions and standard pack quantity, with full specifications on the linked datasheet and product pages.
Key takeaways
- Five vial seal lines and one cap line, from the 13 mm tear-off seal to the 38 mm ROPP cap.
- The FlipTop Optima is the only line in all five seal sizes, in Bridge, Button and Flower designs.
- Standard box: 420 × 270 × 320 mm, holding 15,000 seals at 13 mm, 6,000 at 20 mm, 3,000 at 28 mm and 1,400 at 32 mm.
- Three delivery forms: Regular, Ready-to-Sterilize and Ready-to-Use (gamma or ETO sterilised).
- Capacity: more than 2.4 billion seals a year and around 250 million aluminium pilfer-proof caps a month.
- Quality: ISO 9001:2015, ISO 14001:2015 and ISO 15378:2017, with a Drug Master File (DMF 18100).
The range at a glance
Choose the line by how the container is opened, then the size by its neck.
| Line | Construction | How it opens | Sizes | Standard |
|---|---|---|---|---|
| FlipTop Optima | Aluminium shell, polypropylene flip-off disc | The disc flips off to expose the stopper; the skirt stays crimped | 13, 20, 28, 32, 34 mm | ISO 8362-6 |
| FlipTop Pull Ring | Aluminium shell, polypropylene disc, pull ring | Pull the ring and open anticlockwise; the whole seal detaches | 20 mm (bridge), 32 mm (flower) | ISO 8362-6 |
| FlipTop Tear-Down | Aluminium shell, polypropylene disc riveted to the aluminium | Open the disc, pull and turn anticlockwise; the whole seal comes off | 13, 20, 32 mm | ISO 8362-6 |
| Tear-off seal | All-aluminium, no plastic | Tear the perforated centre away | 13, 20, 32 mm | ISO 8362-3 |
| Tear-down seal | All-aluminium, no plastic | Tear the perforated section down and lift the seal off | 20 mm | ISO 8362-3 |
| Pilfer-proof (ROPP) cap | Threadless aluminium shell with pilfer band | Unscrew; the band breaks on first opening | 22, 25, 28, 35, 38 mm | Bottle neck finish |
FlipTop Optima flip-off seals
The FlipTop Optima is the general-purpose injectable seal in the range, offered in three designs and four finishes. Designs: Bridge (with groove or without groove), Button, and Flower. The Button design carries intrinsic tamper evidence from a 12-stem flower beneath the button. Finishes: glossy, matte, embossed and printed.
| Size | D1 inner aluminium (mm) | Total height (mm) | Standard pack per box |
|---|---|---|---|
| 13 mm | 13.36 min | 7.62 to 8.38 | 15,000 (5,000 × 3 bags) |
| 20 mm | 20.22 min | 9.02 to 9.91 | 6,000 (bag split confirmed with the quotation) |
| 28 mm | 27.60 to 28.20 | 11.06 to 12.06 | 3,000 (1,500 × 2 bags) |
| 32 mm | 32.10 to 32.90 | 14.30 to 15.50 | 1,400 (700 × 2 bags) |
| 34 mm | 33.60 to 34.00 | 15.00 to 16.00 | Confirmed with the quotation |
FlipTop Pull Ring seals
The Pull Ring removes the whole seal in one motion and is often marked “For Oral Use Only” or “Flip Top & Tear”.
| Size | Design | D1 inner aluminium (mm) | Total height (mm) | Standard pack per box |
|---|---|---|---|---|
| 20 mm | Bridge, 6 taper bridges | 20.00 to 20.60 | 9.00 to 10.00 | 6,000 (bag split confirmed with the quotation) |
| 32 mm | Flower, 8 fins | 32.15 to 32.40 | 14.30 to 15.30 | 1,400 (700 × 2 bags) |
FlipTop Tear-Down seals
The FlipTop Tear-Down is used mainly for oral vaccinations, where the whole seal is taken off before dosing.
| Size | Design | D1 inner aluminium (mm) | Total height (mm) | Standard pack per box |
|---|---|---|---|---|
| 13 mm | Bridge | 13.30 to 13.50 | 6.80 to 8.30 | 15,000 (5,000 × 3 bags) |
| 20 mm | Bridge | 20.00 to 20.60 | 8.80 to 9.80 | 6,000 (bag split confirmed with the quotation) |
| 32 mm | Flower, 8 fins | 32.40 to 33.15 | 14.30 to 15.30 | 1,400 (700 × 2 bags) |
All-aluminium tear-off and tear-down seals
These two lines carry no plastic component, for products and markets that specify an all-metal overseal.
| Line and size | D1 inner aluminium (mm) | Total height (mm) | Bridges | Standard pack per box |
|---|---|---|---|---|
| Tear-off 13 mm | 13.20 to 13.60 | 6.90 to 7.70 | 2 | Confirmed with the quotation |
| Tear-off 20 mm | 20.00 to 20.60 | 7.40 to 8.00 | 2 | Confirmed with the quotation |
| Tear-off 32 mm | 32.40 to 32.60 | 13.00 to 13.60 | On request | Confirmed with the quotation |
| Tear-down 20 mm | 20.50 to 20.70 | 7.50 to 8.50 | 2 taper | Confirmed with the quotation |
Standard box counts are published for the FlipTop lines; all-aluminium counts come with the quotation. Disc and perforation diameters, heights and aluminium thickness for every seal are in the seal sizing guide.
Aluminium pilfer-proof (ROPP) caps
ROPP caps close threaded glass and PET bottles for oral liquids, syrups and reagents, with EPE, latex or PVC liners and plain, printed or chamfered finishes. Values below are typical and confirmed with the quotation.
| Size | Typical container | Typical carton |
|---|---|---|
| 22 mm | 10 ml to 60 ml bottles | About 12,000 |
| 25 mm | 30 ml to 125 ml bottles | About 10,000 |
| 28 mm | 100 ml to 500 ml bottles | About 7,500 |
| 35 mm | 150 ml to 500 ml wider-neck bottles | About 5,000 |
| 38 mm | 200 ml to 1 litre wide-mouth bottles | About 4,000 |
Specification shared across the seal range
All seal lines are made from the same controlled materials and ship in the same delivery forms.
| Item | Specification |
|---|---|
| Aluminium | AA8011 to EN 15088:2005, REACH and RoHS compliant |
| Coating | Epoxy lacquer to 21 CFR 175.300, pigmentable |
| Plastic disc | Polypropylene to FDA 21 CFR 177.1520 and EC 1895/2005 |
| Delivery forms | Regular, Ready-to-Sterilize, Ready-to-Use (gamma or ETO) |
| Bagging | Tyvek available; double-bagged for aseptic areas |
| Shelf life | Non-irradiated: 3.5 years before capping, 5 years after; RTU: 2 years before capping |
| Colours | A wide range, matte or glossy, customised to requirement |
The full field-by-field specification for each line, with opening forces, is on the technical datasheets page.
Printing and using this catalogue
Print this page from your browser to keep a copy for a shortlisting file or a line trial. The printed copy is a reference, not a controlled document. The drawing issued with a quotation is the controlled version of any part, and it is the one to attach to a purchase specification.
The range table answers the first question a buyer has, which lines exist in the neck size of their vial. The size tables then give D1 and total height to hold against the vial and stopper drawings. Pack quantities convert an order into boxes for warehouse planning: 100,000 20 mm seals, for example, is about 16.7 standard boxes of 6,000. Order quantities and lead times are set out on the MOQ and lead times page; a standard design typically starts from 50,000 pieces per size and colour, confirmed on enquiry.
What to send with a catalogue enquiry
Name the line, design and size from this catalogue, and add the details below.
- Vial or bottle drawing, and stopper drawing for vial seals
- Colour and finish, with any print or emboss artwork
- Liner for ROPP caps
- Delivery form and bagging
- Annual volume, first-order quantity and destination
Contact Autofits and the drawing and quotation for the parts you select come back together.
Frequently asked questions
Is the Autofits catalogue available as a PDF?
The catalogue is published as this web page rather than a PDF, so the dimensions and pack quantities you read are the current ones. You can print the page from your browser. For a controlled record of a specific part, ask for its drawing, which is issued with the quotation.
Which vial seal sizes does Autofits make?
Autofits makes vial seals in 13, 20, 28, 32 and 34 mm. The FlipTop Optima covers all five sizes, the FlipTop Tear-Down and all-aluminium tear-off seal come in 13, 20 and 32 mm, the FlipTop Pull Ring in 20 and 32 mm, and the all-aluminium tear-down seal in 20 mm.
Are ROPP caps and vial seals the same sizes?
No. Vial seals are crimped over a rubber stopper on an injection vial and come in 13, 20, 28, 32 and 34 mm. ROPP caps are rolled onto the screw neck of a bottle and come in 22, 25, 28, 35 and 38 mm. The 28 mm figure appears in both ranges but refers to different neck finishes.
How many seals are in a standard box?
For FlipTop seals, a standard box of 420 × 270 × 320 mm holds 15,000 seals at 13 mm in three bags of 5,000, 6,000 at 20 mm, 3,000 at 28 mm in two bags of 1,500, and 1,400 at 32 mm in two bags of 700.
Does Autofits make custom seals outside this catalogue?
Autofits designs and develops seals in-house and customises to requirement, including colour, print and emboss. Custom work typically starts from 100,000 pieces and typically takes 4 to 6 weeks including artwork approval, both confirmed with the quotation.
