Vial Seal Design and Filling Speed: How Closure Geometry Affects Capping Line Throughput

Vial seal design directly affects how fast a fill-finish line can run, because the geometry of the seal (its centering, button shape, crimp behaviour, and dimensional consistency) determines how reliably the capping station can place and crimp each seal without jams, mis-feeds, or rejects. A seal that feeds cleanly, self-centres on the vial, and crimps predictably lets a capping station run at higher sustained speed with fewer stoppages. A seal that varies dimensionally from piece to piece forces the line to slow down or generates more rejected vials, both of which cut effective throughput. In short, the closure is not a passive part: its tolerances are a line-speed variable.

This article explains the engineering link between seal geometry and capping throughput, why dimensional consistency matters more than peak machine rating, and how design choices change the reject rate on a real line.

Key takeaways

Effective line speed is set by the capping station as much as by the filler, and the seal’s mechanical behaviour at that station is a major input.
Four geometry factors dominate: centering on the vial, button/flip-feature design, crimp behaviour under the crimping head, and piece-to-piece dimensional consistency.
Consistency beats nominal speed. A seal held to tight tolerances lets a line run at a stable rate; a seal with wider variation forces slowdowns or raises rejects.
Capping defects are an integrity risk, not just a yield problem. Under EU GMP Annex 1, sealed vials are treated as a critical step and inspected, so a poorly capped vial is a rejected vial.
A seal-design change has been shown, in one case, to allow roughly 30% faster filling/production, an illustration of how much the closure choice can move throughput.
Reliable high-speed capping starts upstream: dimensional control and 100% visual inspection of the seal before it ever reaches the customer’s line.

Why the capping station governs line speed

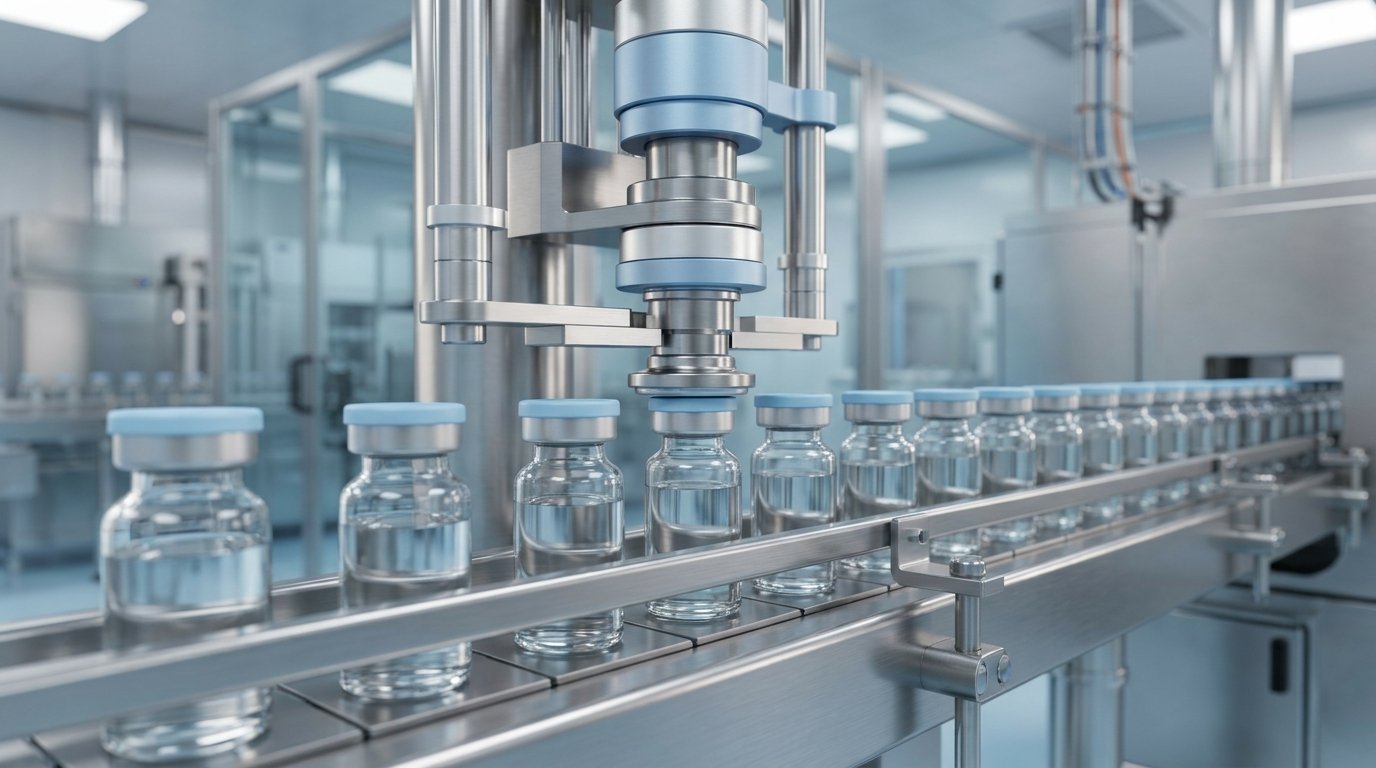

On a fill-finish line, the capping (sealing) station is frequently the rate-limiting point, so the seal’s behaviour there sets the practical ceiling on throughput. A line fills the vial, places the rubber stopper, then transfers the vial to a capping station where the aluminium or aluminium-plastic seal is fed, placed over the stopper, and crimped down to secure it. Each of those motions has to happen cleanly at speed. If the seal hesitates in the feeder track, lands off-centre, or crimps inconsistently, the station either ejects that vial or the line slows to keep the defect rate acceptable.

This is why a machine rated for a given vials-per-minute does not, on its own, predict real output. The realised rate depends on how the consumables behave at speed. A well-matched seal lets the station sit near its rated speed with a low reject rate; a poorly matched one drags the effective rate down even on the same machine. The seal is a process input, not just a part on the bill of materials.

The four geometry factors that drive throughput

Four aspects of seal geometry account for most of the difference between a line that runs smoothly and one that stalls: centering, button design, crimp behaviour, and dimensional consistency. Each interacts with the capping station’s tooling.

Centering on the vial

A seal that self-centres on the vial neck as it is placed reduces the chance of a tilted or off-seat seal entering the crimping head. Off-centre placement is a common cause of crimp defects and ejections at speed, because the crimping rollers expect the seal to sit square on the stopper. Geometry that guides the seal into position (a consistent skirt diameter and inner profile matched to the vial finish) lets placement happen reliably without the station needing to slow down to compensate.

Button and flip-feature design

For aluminium-plastic flip-off seals, the shape of the plastic button and its flip feature affect how the seal orients and feeds. A button profile that feeds in a consistent orientation through the sorting and delivery track avoids mis-feeds. Different flip-off sub-types (bridge, button, and flower or scoreline variants) present differently to the tooling, which is one reason a given line and market tend to standardise on a particular sub-type. The FlipTop Optima flip-off seals range is built around exactly these sub-types. The choice is partly an opening-experience decision and partly a line-behaviour decision. You can read more in the explainer on how flip-off caps work and the comparison of bridge-type versus button-type flip-off seals.

Crimp behaviour

The aluminium skirt has to fold predictably under the crimping head to lock the seal onto the vial and secure the stopper. Consistent metal temper, thickness, and skirt dimensions make the crimp repeatable, which keeps crimp force and the finished crimp profile within spec across thousands of vials. Inconsistent crimping shows up as loose seals, over-crimped (cracked) skirts, or seals that fail downstream integrity checks. Because the crimp is what holds container closure integrity together, crimp consistency is both a speed factor and a quality factor. The relationship between crimping and a leak-tight closure is covered in the guide to container closure integrity testing.

Dimensional consistency

Of the four, piece-to-piece dimensional consistency is the one that most directly sets sustainable line speed. A capping station tuned to a given seal geometry runs fastest when every seal is effectively identical. When inner diameter, skirt height, metal thickness, or button dimensions drift across a lot, the station encounters parts it is not set up for, and each out-of-tolerance piece risks a mis-feed, a bad crimp, or an ejected vial. Tight tolerances are what let an operator set a high speed and leave it there.

Why consistency matters more than nominal speed

A seal that is dimensionally consistent enables higher real throughput than one with a higher theoretical feed rate but wider variation, because line speed in practice is limited by the reject rate, not the peak rate. A capping station can be pushed to a high nominal speed, but if that speed produces more off-centre placements or marginal crimps, the rejected vials erase the gain. Each rejected vial is filled product lost, plus the cost of inspecting and removing it.

Consistency lowers that reject rate, which lets the line hold a higher stable speed without the defect count climbing. This is why dimensional control at the seal manufacturer matters to the customer’s output: the variation that determines line behaviour is largely built into the seal before it arrives. A supplier that holds tight tolerances and verifies them is, in effect, supplying line speed along with the seal.

How much can design choice move the number?

Seal design choices can change filling and production speed by a meaningful margin, not just a few percent. In one case, a change to the seal type chosen for a product was associated with roughly 30% faster filling and production. The figure is best read as an illustration of scale rather than a guarantee: the right number for any given product depends on the vial, the stopper, the machine, and the recipe. The point is that the seal is one of the levers, and choosing a geometry that feeds and crimps cleanly on the specific line can unlock throughput that a generic seal would leave on the table.

This is also why seal selection is worth doing early, in dialogue with the closure supplier, rather than treating the seal as a commodity fixed at the end. Matching the sub-type and tolerances to the line and the regulated market it serves is a design decision with a throughput payoff.

Capping quality is a regulatory expectation, not just an efficiency one

Under EU GMP Annex 1, the capping of filled vials is treated as a critical step in sterility assurance, and sealed vials are subject to 100% inspection for defects, so a poorly capped vial is a vial that must be rejected. EU GMP Annex 1, the EU guideline for the manufacture of sterile medicinal products, frames container closure integrity as part of the contamination control strategy. A defective seal (loose, tilted, or cracked) is an integrity risk, and the line is expected to detect and remove it.

That regulatory frame reinforces the engineering one. A seal geometry that crimps reliably reduces the population of defective vials the inspection system has to catch, which protects both throughput and the integrity record. Speed and quality are not in tension here: the same dimensional consistency that lets the line run fast is what keeps the capped-vial defect rate low.

How this works in practice at Autofits

Autofits manufactures aluminium-plastic FlipTop® seals, including the Optima flip-off range with its bridge, button, and flower or scoreline sub-types, alongside tear-off and tear-down aluminium seals and aluminium pilfer-proof (ROPP) caps in 13, 20, and 32 mm sizes. Production runs in a 75,000 sq ft Nashik manufacturing facility with an ISO Class 8 cleanroom under an ISO 15378:2017 quality system, with high-speed visual inspection on the closure lines. The sub-type options were developed around the standards of specific regulated-market customers, which is why different markets and lines settle on different variants. That combination of controlled dimensional manufacturing and 100% visual inspection is what lets a seal behave predictably on a customer’s capping station, which is the upstream half of running a fast, low-reject fill-finish line. The flip-off seal glossary entry covers the construction in more detail, and the full certification set is on the quality page.

Frequently asked questions

Does vial seal design really affect filling line speed?

Yes. The capping station is often the rate-limiting point on a fill-finish line, and the seal’s centering, feeding, and crimp behaviour determine how fast that station can run without mis-feeds or rejects. A seal matched to the line and held to tight tolerances supports a higher sustained speed than a seal that varies from piece to piece.

What seal properties matter most for capping throughput?

Centering on the vial, the button and flip-feature design (for flip-off seals), crimp behaviour of the aluminium skirt under the crimping head, and above all piece-to-piece dimensional consistency. Consistency is the property that most directly sets the speed an operator can run and hold.

Why does dimensional consistency matter more than the machine’s rated speed?

Because real output is limited by the reject rate, not the peak rate. A capping station can be pushed faster, but if the seals vary, more vials are placed off-centre or crimped poorly and get rejected, erasing the gain. Consistent seals keep the reject rate low so the line can hold a higher stable speed.

Can changing the seal type meaningfully increase production speed?

It can. In one case, a change to the seal type chosen for a product was associated with roughly 30% faster filling and production. The exact figure depends on the vial, stopper, machine, and recipe, so it is best treated as an illustration of how much the closure choice can matter rather than a guaranteed result.

How do capping defects relate to container closure integrity?

The crimp is what locks the seal onto the vial and secures the stopper, so a defective crimp (loose, tilted, or cracked) is a container closure integrity risk. Under EU GMP Annex 1, sealed vials are inspected and defective ones rejected, which is why crimp consistency is both a throughput factor and a quality requirement.

Why involve the seal supplier early in fill-finish line design?

Much of the variation that governs line behaviour is built into the seal before it reaches the line, so matching the sub-type and tolerances to the specific vial, machine, and regulated market early lets the line run faster with fewer rejects than fixing the seal as a late-stage commodity choice.
